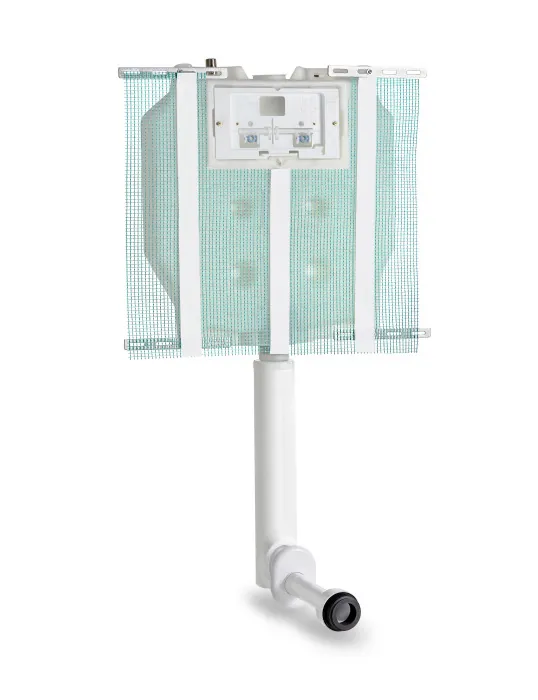

PUCCI^® eco^® 6l - 3l

PUSH-BUTTONS FLUSH TANK FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

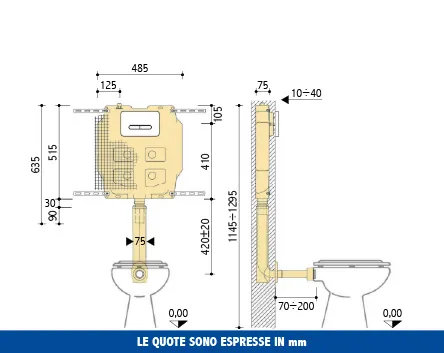

rinsing pipe adjustment
4 cm (+ 2 - 2 cm) after installation

1315360001

eco^® 6l – 3l

* 1315360201

eco^® 6l – 3l
Anti-condensation

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting 6-3l

long - rinsing regulation range 6-3l

short - rinsing regulation range 3 - 2,5 - 2l

Spare parts Accessories

FIELDS OF APPLICATION

For brick walls
For floor-mounted bowl
Two quantities water rinsing

FEATURES AND EQUIPMENT

Polyethylene tank 7,5 cm total thickness
Plaster holder pre-built mesh
Front control with two quantities rinsing
Water connection from above misaligned on the left
1/2” stop cock with support
4 supporting brackets with tank fastening screws
35 x 11 cm adjustable flush pipe (+2-2 cm)
Polystyrene foam protection, covers and cap for rinsing pipe adjustment
Eccentric escutcheon and 22 cm joint
Ø 48-58 mm combined clamp with clamp cover
From Ø 40 mm to Ø 45 extension socket,
OR 143 and Ø 55-44 clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts
Anti-condensation
