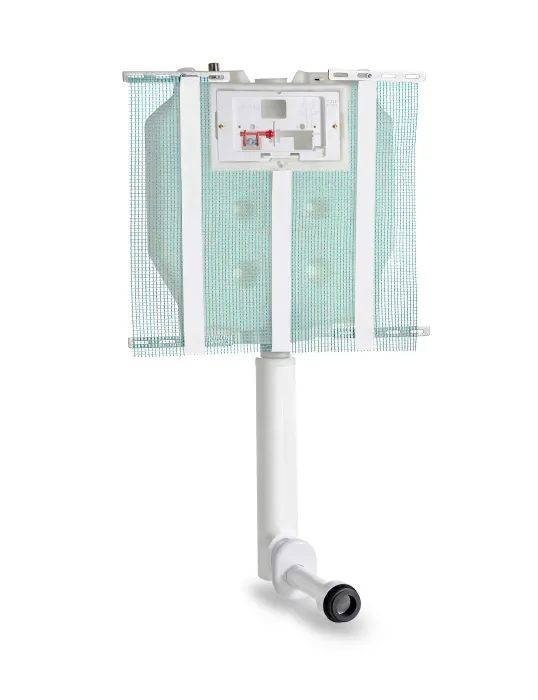

PUCCI^® SARA 6l

HIGH SET PUSH-BUTTON - FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

1315060001

SARA 6l

* 1315060201

SARA 6l
Anti-condensation

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

pre - determined rinsing configuration 6l

rinsing regulation range 4l

Spare parts Accessories

FIELDS OF APPLICATION

For brick walls
For floor-mounted bowl
Single quantity total rinsing even with partial flushing

FEATURES AND EQUIPMENT

Polyethylene tank 7,5 total thickness
Plaster holder pre-built mesh
Front push-button control with single quantity rinsing even partial flushing
Water connection from above misaligned on the left
1/2” stop cock with support
4 supporting brackets with tank fastening screws
35 x 11 cm adjustable flush pipe (+2-2 cm)
Polystyrene foam protection, covers and cap for rinsing pipe adjustment
Eccentric escutcheon and 22 cm joint
Ø 48-58 mm combined clamp with clamp cover
From Ø 40 to Ø 45 mm extension socket, OR 143 and Ø 55-44 mm clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts
Anti-condensation
