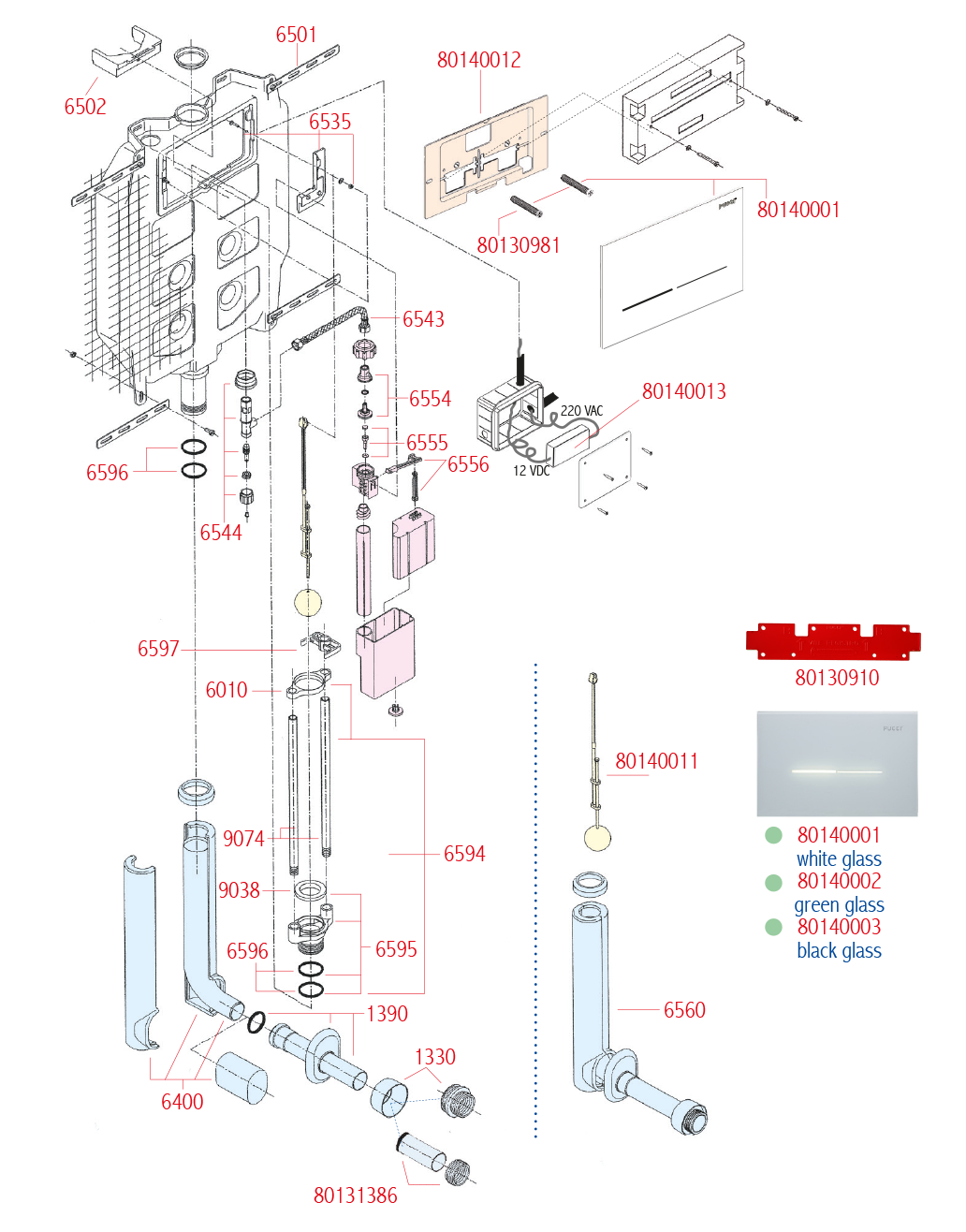

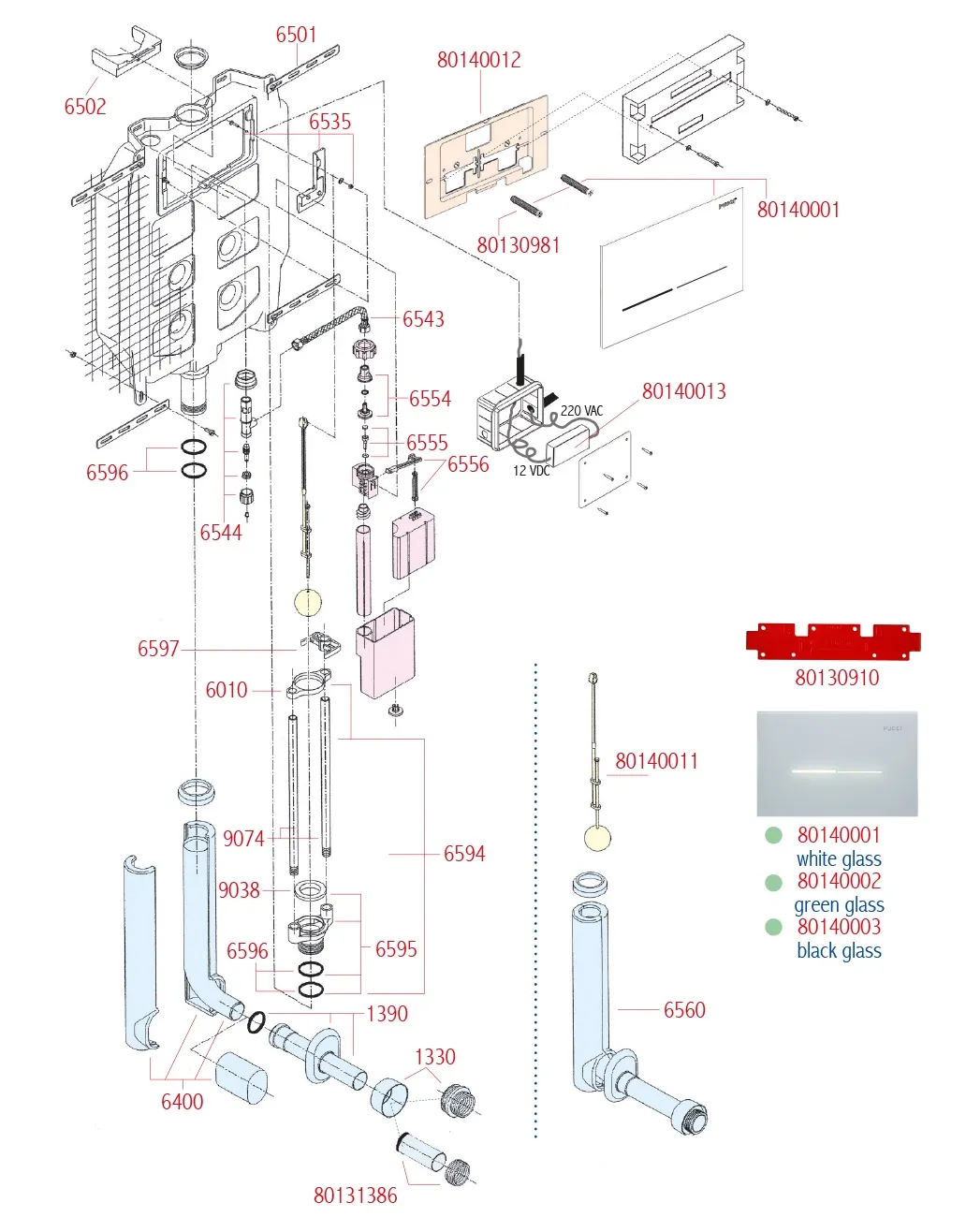

PUCCI^® eco^® SFIORO^®

ORIGINAL SPARE PARTS

Code

Part

Description

80001330

Ø 48-58 mm combined clamp with cover - white

80001390

Eccentric escutcheon set - OR 143 22 cm joint - white

80006010

Ball frames guide

80006111

Eco-Sara water supply kit

80006400

35x11 cm Ø 50-40 mm discharge pipe with lining and cap

80006501

4 brackets with bolts for wall mounted tank

80006502

Spacer V95

80006535

Valve support brackets with screws

80006543

F.F. flexible pipe with gaskets

80006544

1/2” brass stop cock with polyethylene support

80006550

Complete valve set

80006554

Brass nipple with inner seat

80006555

Plungers with 10x5 mm gaskets

80006556

1+1

Valve activation levers

80006560

35x11 cm adjustable flush pipe (+2-2 cm), with lining and cap, 22 cm joint, eccentric escutcheon and Ø 48-58 mm combined clamp with cover - white

80006594

Pull-out seat fitted with overflow pipes and ball guide frame

80006595

Pull-out seat with 2 OR 147 and seat gasket

80006596

OR 147 for pull-out seat and tang

80006597

Spacer frames

80009038

Ball seat gaskets

80009074

47 cm overflow pipes for all models

80130910

Assembly template for cover plate screws

80130930

2+2

M8 7 cm extended adjustment screws set

80130981

Cover plate fastening screws

80131386

1+1

Bowl connection kit with pipe expansion sleeve Ø 40-45 mm with OR 143 and clamp Ø 55-44 mm

80136110

Eco-Sara bowl connection kit

80140001

White glass Sfioro Eco plate

80140002

Green glass Sfioro Eco plate

80140003

Black glass Sfioro Eco plate

80140011

Complete set with ball - small rod - run lock

80140012

Door with servomotor

80140013

220 VAC - 12 VDC power supply with 3 m cable and connector

80140091

Eco Sfioro Pucci Kit: white plate, door with servomotor, Pucci Sfioro draining array, power supply, sheath, build in case

80140092

Eco Sfioro Pucci Kit: green plate, door with servomotor, Pucci Sfioro draining array, power supply, sheath, build in case

80140093

Eco Sfioro Pucci Kit: black plate, door with servomotor, Pucci Sfioro draining array, power supply, sheath, build in case
