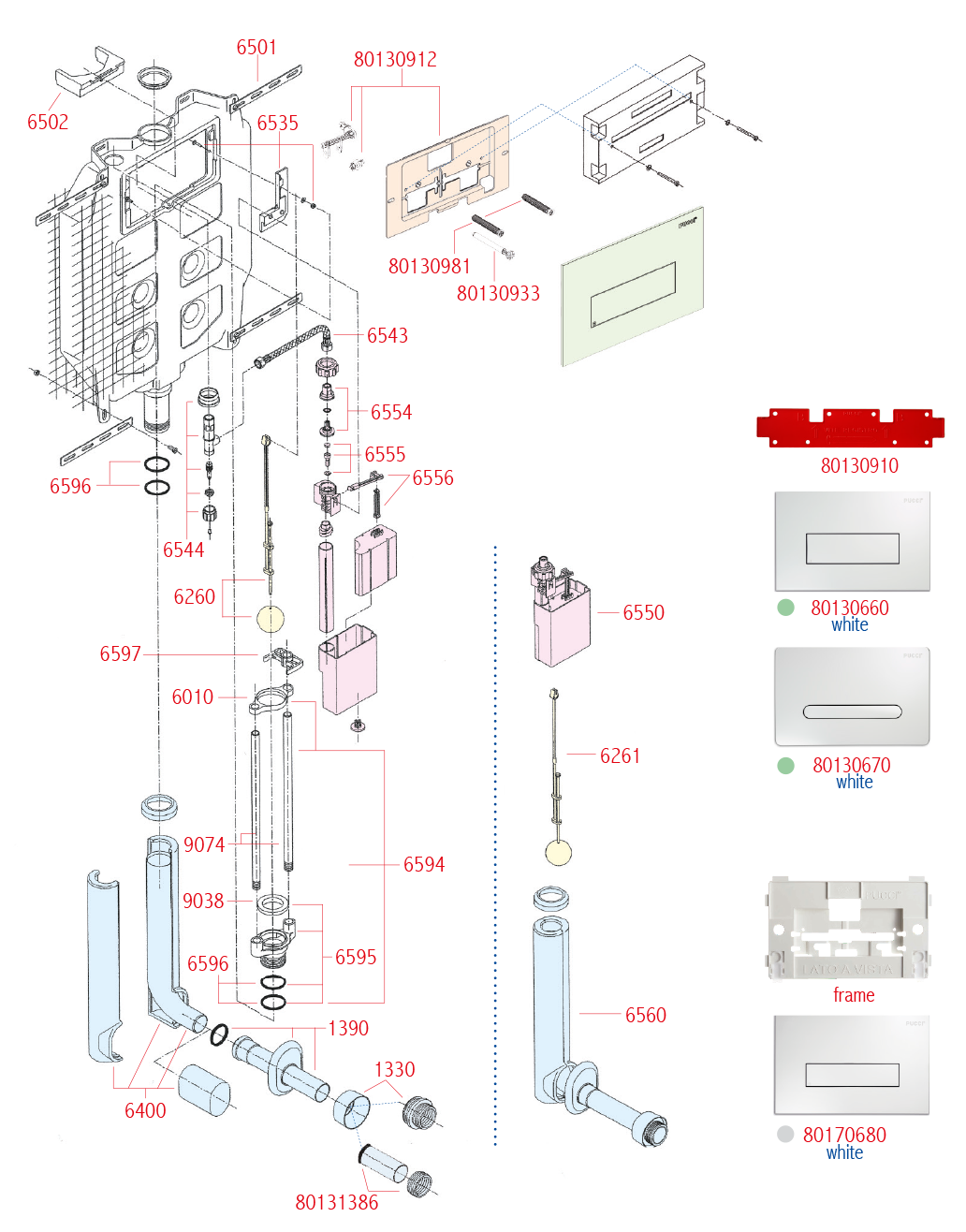

PUCCI^® SARA

ORIGINAL SPARE PARTS

Code

Part

Description

80001330

Ø 48-58 mm combined clamp with cover-white

80001331

Ø 48-58 mm combined clamp with cover chrome-plated

80001390

Eccentric escutcheon set - OR 143 22 cm joint - white

80001391

Eccentric escutcheon set - OR 143 22 cm joint - chrome-plated

80006010

Ball frames guide

80006111

Sara - Eco water supply kit

80006260

Ball with small tie rod

80006261

Complete ball set with rod

80006400

35x11 cm Ø 50-40 mm discharge pipe with lining and cap

80006501

4 brackets with bolts for wall mounted tank

80006502

Spacer V95

80006535

Valve support brackets with screws

80006543

F.F. flexible pipe with gaskets

80006544

1/2” brass stop cock with polyethylene support

80006550

Complete valve set

80006554

Brass nipple with inner seat

80006555

Plungers with 10x5 mm gaskets

80006556

1+1

Valve activation levers

80006560

35x11 cm adjustable flush pipe (+2-2 cm), with lining and cap, 22 cm joint, eccentric escutcheon and Ø 48-58 mm combined clamp with cover - white

80006594

Pull-out seat fitted with overflow pipes and ball guide frame

80006595

Pull-out seat with 2 OR 147 and seat gasket

80006596

OR 147 for pull-out seat and tang

80006597

Spacer frames

80009038

Ball seat gaskets

80009074

47 cm overflow pipes for all models

80130660

Sara linea cover plate white 4,7 thickness

80130670

Sara tratto cover plate white 4,7 thickness

80130910

Template for cover plate screws

80130912

Sara complete inspection door

80130930

2+2

Plate regulating and 7 cm fastening extended screws

80130933

Adjustment screws

80130981

Cover plate fastening screws

80131386

1+1

Bowl connection kit with Ø 40-45 mm pipe expansion sleeve with OR 143 Ø 55-44 mm and clamp

80136110

Sara - Eco bowl connection kit

80170680

Sara white plate with frame
